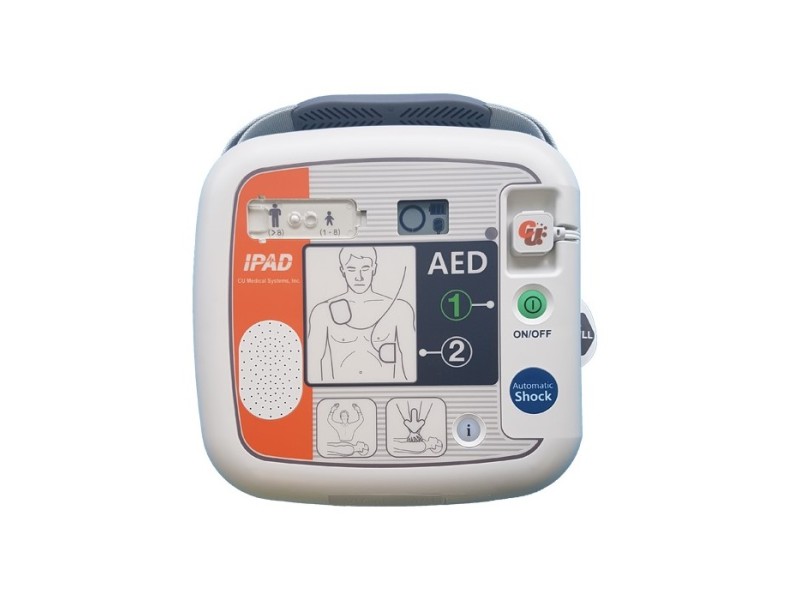

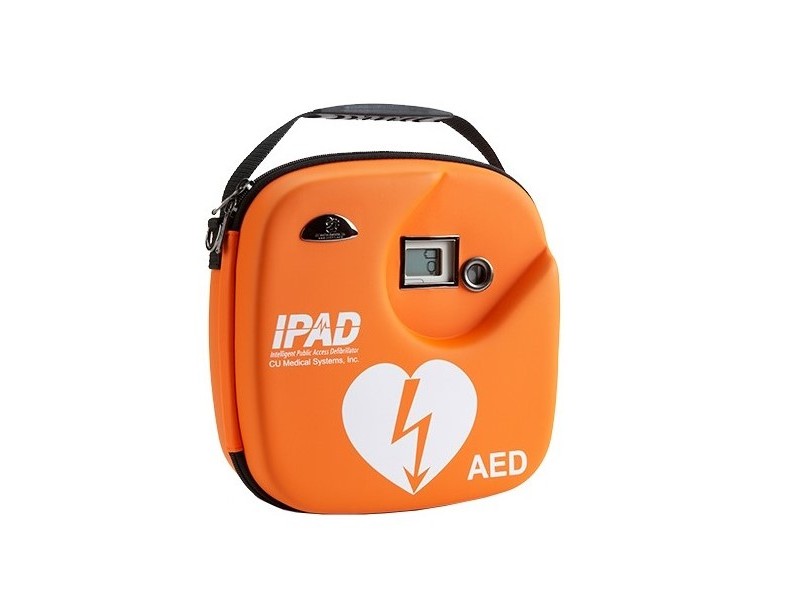

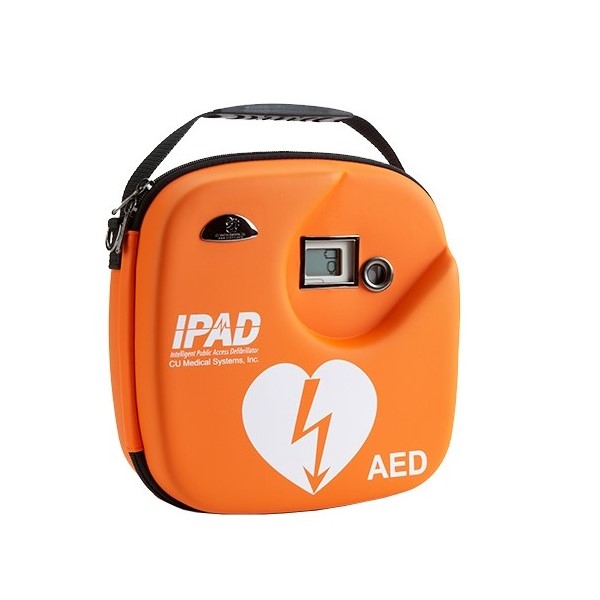

iPAD SP1 AED Fully Automatic Defibrillator (B-63470) (63470)

Brand:iPAD
Product Code: 63470

£884.50

exc VAT

Total Cost: £884.50 exc VAT

Qty:

Description
About iPAD SP1 AED Fully Automatic Defibrillator (B-63470) (63470)

iPAD SP1 AED Fully Automatic Defibrillator (B-63470) (63470)

The IPAD SP1 Defibrillator is designed with the end user in mind, Making it as simple as possible to use. It uses state of the art technology to save precious seconds when every second counts.

The iPAD Standard Package SP1 AED Defibrillator SP1 comes as a package to enable you to be ready to save a life in minutes. The standard package includes:
- SP1 Device with Starting 7 Year Warranty
- One set of Adult/Child Electrode Smart Pads
- LIMNO2 Battery pack with 4 year warranty
- 1 set of AED starter kits, which include: Nitrile gloves (Large), 2 large dry patient wipes, Gallant prep razor, CPR faceshield
- Tuff-cut scissors
The iPAD SP1 is the latest in the range of intelligent public access defibrillators from one of the World’s leading manufacturers’ of clinical defibrillator monitors.

Designed to be used by minimally trained individuals, the iPAD SP1 is suitable for use almost anywhere that people gather, whether it’s within the workplace, a shopping centre or a hospital. The iPAD SP1 makes saving lives easier than ever.

Key Features
- Easily switch from Adult to Child mode without changing pads.- Safety cover prevents accidental switching - Smaller child pads also available
- Integrated pad storage - electrode pads are stored, pre-connected, in a clear compartment on the underside of the unit.- Pads are easily removed by pulling on the exposed tab- The pads are always ready for use and easily checked
- CPR Detection - the iPAD SP1 detects if CPR is being performed when appropriate.- If CPR is not being performed, voice prompts encourage the responder to ‘perform CPR’- If CPR is being performed, voice prompts encour age the responder to ‘continue CPR’
- Visual Indicator shows at a glance.- Battery Life- Unit Status - Pad Status
- Internal memory stores the last 5 events/3 hours of data.- Data can be transferred via the built in SD card and IrDA ports- Data can be reviewed via the ‘CU-EX1’ software (for pc)
- ‘i’ button performs the following functions;- Allows responder to select if CPR metronome is heard during CPR- Checks for faults and errors- Provides ‘handover’ information to Ambulance crew (usage time and shocks delivered)- Allows the SP1 to be programmed with CPR protocols such as compression rate, number of compressions, breaths and cycles etc, ensuring that the SP1 is always up to date- Downloads data for review- Checks the units software version
Device Specifications
- Dimensions: 260mm x 256mm x 69.5mm (Width x Length x Height)
- Weight: 2.4Kg (Including the battery pack and pads)
- Output Energy: 150 J at 50 Ω load for adults, 50 J at 50 Ω load for children
- Energy Storage: 10 seconds, typical. Using new disposable LiMnO2 battery pack (at 20°C)
- Charging Time: 11 seconds, typical. Using new disposable LiMnO2 battery pack, depleted by15 discharges at 200 Joules per discharge (at 20°C)
- Time from CPR to Shock: Less than 6 seconds from the completion of CPR to shock delivery
- Discharge: The device performs a self-discharge in the following events: When the patients ECG changes to a rhythm that does not require defibrillation. When the device is turned off by pressing the Power Button for at least a second. When the pad is detached from the patients body or the pad connector is detached from the device. When the impedance of the patient is out of the range of defibrillation (25 Ω ~ 175 Ω) (Semi-automatic only) When the shock button is not pressed within 15 seconds from the completion of the charge
- Fully-Automatic Shock: Shock is automatically delivered if a shockable rhythm is detected
Enviromental Specifications
- Operational Status: (The device is in emergency use)
  Temperature: 0°C ~ 43°C (32°F ~ 109°F)
  Humidity: 5% ~ 95% (non condensing)
- Standby Status: (The device is stored together with the defibrillator pads and the battery pack is inserted ready to be used in an emergency)
- Temperature: 0°C~ 43°C (32°F ~ 109°F)
  Humidity: 5% ~ 95% (non condensing)
- Altitude: 0 to 15,000 feet (operational and storage)
- Drop Withstands: 1.2-meter drop to any edge, corner, or surface
- Vibration: Operating: Meets MIL-STD-810G Fig.514.6E-1, random
- Standby: Meets MIL-STD-810G Fig.514.6E-2, swept sine (helicopter)
- Sealing: IEC 60529: IP55
- ESD: Meets IEC 61000-4-2:2001
- EMI (Radiated): Meets IEC 60601-1-2 limits, method EN 55011:2007 +A2:2007, Group 1, Class B
- EMI (Immunity): Meets IEC 60601-1-2 limits, method EN 61000-4-3:2006 +A1:2008 Level 3 (10V/m 80MHz to 2500MHz)
